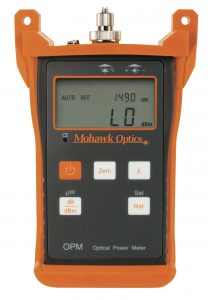

MO-OPM-25/MO-OPM-15 Optical Power Meter

MO-OPM-1x/2x series Optical Power Meter paired with MO-SLS series Stabilized Laser Source can meet general test requirements of fiber identification, attenuation/loss measurements, continuity verification and transmission quality evaluation on singlemode and multimode fibers in LAN/WAN/CATV infrastructure. MO-OPM-1x/2x is ideal for both lab and field applications offering high quality, high stability and competitive low costs.

General Information
  • Applicable on singlemode/multimode fibers
  • Microprocessor & linear amplifier ensure long-time accuracy
  • Quick response, no warm-up
  • Interchangeable connectors: FC/SC/ST
  • Dual-way power supply: 9V alkaline battery/AC adapter
  • Pocketsize, lightweight and damp-dust-shock proof
  • Power saving: Auto-off setting
  • MOD tones detection
  • Display Units: dB/dBm/mW
  • PC software for data upload and reporting (MO-OPM-2x only)
Specifications
Model
OPM-15
OPM-25
A
B
A
B
Calibrated Wavelength (nm) (1)
850,1300,1310,1490,1550,1625
Power Range (dBm)(2)
-70~+10
-50~+27
-70~+10
-50~+27
Application Range
Single/Multimode fibers
Detector Type
InGaAs
Accuracy
0.25 dB (5%) @25ºC& -10dBm (0.5 dB@850nm)
Resolution
0.01dB
MOD Identification
270,1K,2K Hz
Display Unit
W/mW/dBm/dB (REF)
Connector (3)
FC (Interchangeable SC, ST)
Data Storage
N/A
3000 records
Connectivity
N/A
RS-232
Power Supply
9V Alkaline Battery(450mAh) / Optional 9V AC Adapter
Battery Life
=40hours
Power Saving
Auto off after 5 minutes idle
Operating Temperature
0ºC ~ 50ºC (32 ~ 122 F)
Storage Temperature
-20ºC ~ 70ºC (-4 ~ 158 F )
Relative Humidity
0 ~ 95% (Non-condensing)
Weight
300g (0.66lbs)
Dimensions (HxWxT)
145x75x25mm (5.7×2.9x1inch)
Note:(1) Other wavelengths and power ranges are open for customization;
      (2) For Model A at 850nm, the lower limit of measurement range is -60 dBm;
(3) OPM-L models with Ф1000m detector are available with:
           FC/SC/ST/DIN/E2000/LC/Universal 1.25mm/Universal 2.5mm connectors.
 * Specifications subject to change without notice
Packaging

Instrument, 9V Alkaline battery, Rubber boot, MO-OPM data analysis software CD (for OPM-25), Warranty card, CE certificate, Certificate of calibration, User manual.
