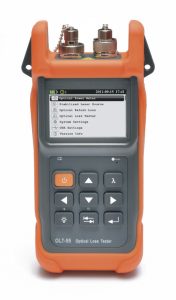

MO-OLT-55 Optical Loss Tester

MO-OLT-55 Intelligent Optical Loss Tester combines stabilized laser source and optical power meter which can perform automatic bidirectional loss test on single fiber with Pass/Fail assessment to offer user-friendly operation and avoid potential operational mistake.

Details
  • FTTx/PON applicable
  • Bidirectional loss test on single fiber
  • Optional ORL test
  • Optical power monitoring
  • Pass/Fail assessment
  • Automatic wavelength identification
  • Remote reference value setting
  • Internal clock & fiber S/N editable
  • Storage of 1000 test records
  • Data transfer to PC via USB
  • USB power charging
  • Over 50 hours continuous operation
  • No warm-up, quick start
  • Backlight
  • Pocketsize, lightweight and easy-to-use
  • CE, FCC, FDA certificates
Specifications

Model MO-OLT-55

A



P

X

Wavelength (±20nm)

1310/1550nm

1310/1490/1550nm

1310/1550/1625nm

Spectrum Width

≤5nm

Emitter Type

FP-LD

Output Power

>-4dBm

Power Stability

±0.05dB/15min; ±0.10dB/8hr

Output Mode

CW, 270Hz, 1KHz, 2KHz

Optical Power Meter

C

H

Calibrated Wavelength

850, 1300, 1310, 1490, 1550, 1625nm

Power Range (dBm)

-70 ~ +10

-50 ~ +27

Display Unit

W/mW/μW/nW/pW/dBm/dB(REF)

Detector Type

InGaAs

Accuracy

±5%±0.01nW(±0.5dB@850nm)

±5%±1nW (±0.5 dB@850nm)

Resolution

0.01dB

Auto Wavelength Id

Yes (With specified Stabilized LaserSource)

MOD Identification

270Hz, 1KHz, 2KHz

Optical Loss Test

Link Loss Range

50dB (1550nm, 200km)

Link Loss Accuracy

±0.25dB

Link Loss Test Time

< 2 seconds per wavelength

ORL Test (Optional)

R

ORL Range

0~60dB

ORL Accuracy

±0.75dB@(0~50dB), ±1.5dB@(50~60dB)

ORL Uncertainty

±0.5dB@20dB
