Ether10.Genius BEST in LTE testing

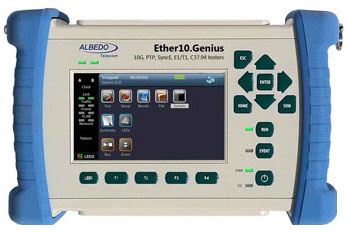

Ether10.Genius is a handheld tester 100% suitable for labs or field use because is full equipped (IP/Ethernet/PTP/T1/E1), battery operated (up to 24h of operation), light (1.2kg) and very rugged. The unit is able to test Ethernet/IP networks up to 10Gb/s while supporting master/slave Sync-E/PTP emulation. It also has interfaces for PDH/T1/E1/E0 and IEEE C37.94. Operation modes Performance, Quality and Wander tests at all interfaces and the ability to emulate and analyse PTP/SyncE, while measuring Freq./Phase, PDV metrics, analyse/generate TIE/MTIE/TDEV and TE. A built-in Rubidium clock disciplined with GPS provides an accuracy of a few nsec.

General Information

Full orchestra in LTE testing

The instrument is ideal for LTE/TDD/5G deployment because it has EVERYTHING engineers need in IP/Ethernet backhaul and PTP/SyncE synchronization. Field experts do not need to carry 16kg bags or several testers with multiple modules to turn up and monitor telecom infrastructures.

Ether10.Genius is equipped with all of the features you may need or imagine such including Master/Slave emulation up to 10Gb/s, BER, RFC2544, eSAM, Multistream, MPLS, Jitter, Wander, etc. to permit the verification of the transmission layer in those terms of performance and quality required to support critical applications.

Case Studies
  • (OPERATIONS)’we need to turnup a 10 GbE network for LTE that must be synchronized with PTP. Do we have any compact tester? ‘
  • (FINANCE) ‘migration towards SyncE has been decided, so the company doesn’t need to invest in two separate units for asynchronous and SyncE, just a single GbE test instrument’
  • (MANAGEMENT) ‘engineers must be ready and able to troubleshoot any technology’
  • (ENGINEER) ‘yes boss, we are willing to do it, we just need a good van and a multitech instrument’
  • (LAB) ‘prepare a PTP Master/Slave emulator to test the new LTE base station but please verify both internal and external clock reference’
  • (POWER) ‘please verify the hi-voltage teleprotection of lines, multiplexers, transformers and generation plant’
Features and Benefits

Built with latest technology it is a light while rugged tester that facilitates many hours of continuous operation.

  • Ports: 2SFP+, WIS, 2RJ45, 2BNC, DTE/DCE, GPS
  • RFC 2544, eSAM (Y.1564), SLA
  • Ext. Clock: 10 MHz, 2048/1544 Mb/s, 2048/1544 MHz, 1 pps
  • Int Clock: Rubidium, OCXO, GPS/GLONASS
  • Synch: G.8261, G.8262, G.8264
  • SyncE MTIE/TDEV measurement & generation
  • C37.94: BER, events, nx64, one-way delay
  • IEEE 1588v2 support decoding
  • PTP master / slave
  • PTP wander analysis/generation
  • FULL T1/E1 test Jitter/Wander, Pulse
  • One-way delay test (GPS accuracy)
  • Datacom with CISCO standard cables
  • DTE+DCE for all operation modes
  • SNMP/MIB support
  • Touchscreen, Mouse, VNC
